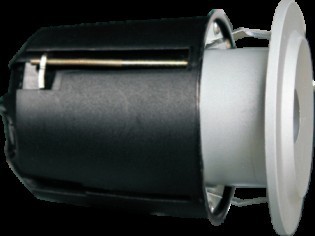

1X3W high power LED Recessed wall washer and ceiling light
خصوصیات:
1.Different beam angle options of lens for single color and RGB fitting.
2.With the different size of driver for low voltage input and high voltage input fitting, there are two options for the height of the fitting.
- Description
- انکوائری بھیجیں
Description
ہاؤسنگ: | 12# ڈائی کاسٹنگ گرے پاؤڈر لیپ شدہ ایلومینیم. T=20-25um Adhesion of ISO class 1/ASTM class 4B |
Light source | Emitter type power LED |
ڈرائیور | low & high input voltage driver inside |
آپریٹنگ درجہ حرارت: | -20~ 40° C |
Power cable: | H05RN-F 3X1.0mm² L=1.0m (high voltage) |
H05RN-F 2X0.75mm² L=1.0m (low voltage) | |
آستین کا بڑھنا: | plastic sleeve |
مان:

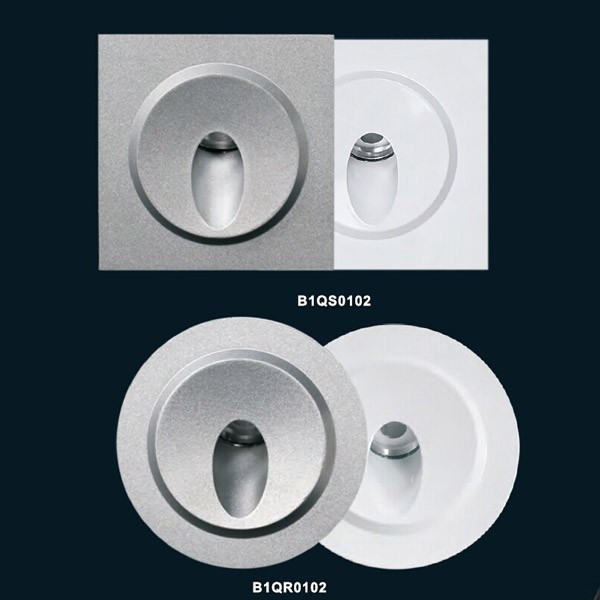

حصہ B1QR0102 / B1QS0102 تکنیک پیرامیٹرز:
حصہ نمبر. | روشنی کا منبع | لینس بیم زاویہ(°) | Input (وی) | Typical Current(ایم اے) | Typical Consumption(w) | Typical Luminace(im) |
B1QR0102 | 1X3W | 80 | 24VDC | 110 | 2.6 | Cool white=75 Warm white=66 |
120VAC | 48 | 3.3 | ||||
240VAC | 28 | 3.3 | ||||
B1QS0102 | 1X3W | 80 | 24VDC | 110 | 2.6 | Cool white=75 Warm white=66 |
120VAC | 48 | 3.3 | ||||
240VAC | 28 | 3.3 |
